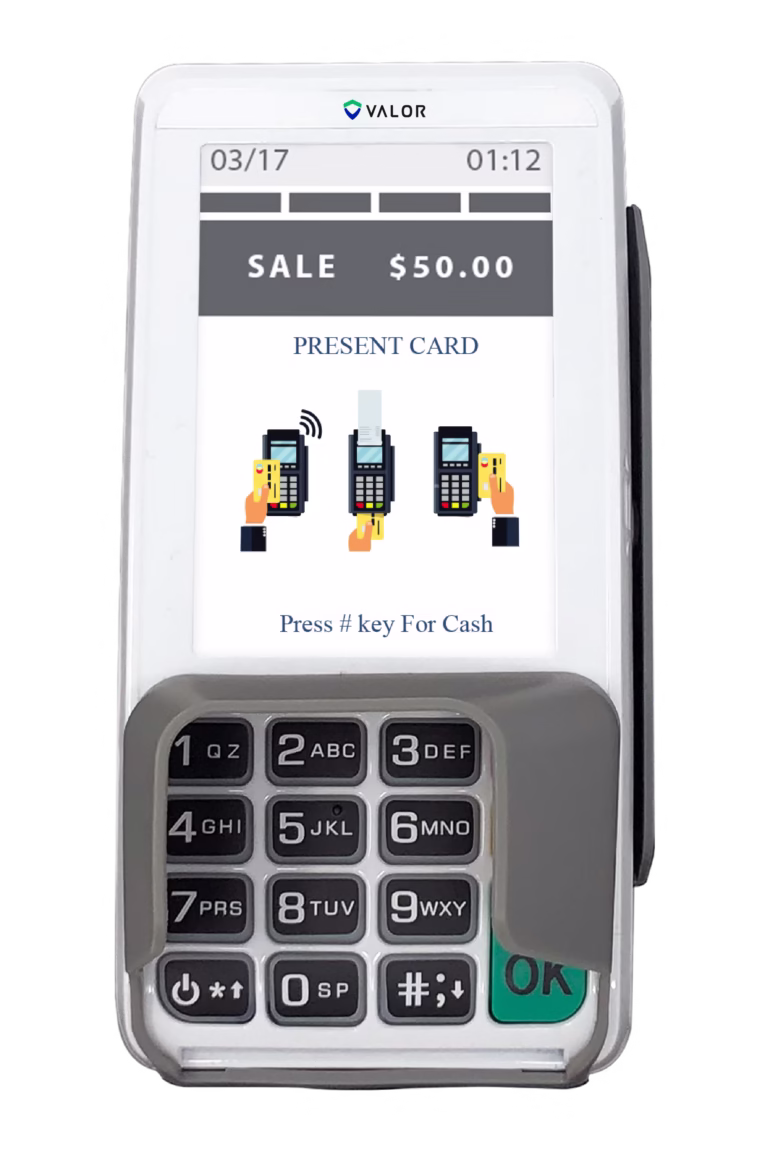

Valor VL300 Technical Specifications
Processor & Memory
- Processor: 32-bit secure microprocessor running Linux-based OS
- Memory: 256MB Flash / 128MB RAM
Display & Input
- 3.5″ Color TFT LCD (320 x 480 pixels)
- Touchscreen: Yes
- Keypad: 15 Standard Backlit Keys
- Digital Signature Capture: Yes
Card Reader Capabilities
- Magnetic Stripe: ISO 7810/7811/7813, Triple Track, Bi-directional
- Smart Card (User Card): ISO 7816 ID-1, 1.8V/3V/5V, T=0 & T=1
- Contactless (Optional): ISO 14443 Type A/B, ISO 18092 NFC, Mifare, Sony FeliCa (13.56 MHz)
Connectivity & Interfaces
- Ethernet (Wired)
- Speaker: Integrated Audio
Software & Libraries
- Supported SDKs: SDK, KMS, TMS, GDB
- Libraries: CTOS, ISO 8583, Crypto Library
Environment & Physical
- Operating Temp: 0°C to 50°C
- Storage Temp: -20°C to 70°C
- Humidity: 5% to 90% (non-condensing)
- Dimensions: 150 x 78.5 x 39 mm
- Weight: 225g
Certifications
- PCI PTS 4.x, EMV L1/L2
- Visa payWave, Mastercard PayPass, Amex ExpressPay, Discover D-PAS
- Interac Flash, J-Speedy, FeliCa, UnionPay UICS, TQM
